Entering journey leg details for amendment

Select the "Leg Details" tab in the "Amend Journey Log" page.

The system displays the following in the “Leg Details” multiline:

Line #

The line number identifying the flight, leg and station record.

Enter the following fields:

Flight #

The number identifying the flight for which journey log is created (Alphanumeric, 30). Data entry in this field is mandatory, if the flight status is either “Cancelled” or “Substituted”. The flight number must be defined in the “Flight Assignment” business component.

Help facility available.

Leg #

The number identifying the leg of the flight (Integer). Data entry in this field is mandatory, if the flight status is either “Cancelled” or “Substituted”. The leg number must be valid for the specified flight number in the “Flight Assignment” business component.

Note: If the “Flight Details Validation Basis” is set as “Assignment” or “Flight #” in the “Set Options” activity of the current business component, then the “Flight #” and “Leg #” combination entered for each leg should be valid values as defined in the “Flight Assignment” business component.

The system displays the following field:

Departure Station

The station from which the journey begins. The system displays the “Starting Station” of the first leg of the journey.

Enter the following fields:

Arrival Station	The destination station of the flight (Alphanumeric, 32). Arrival Station code should be a valid value as defined in the ‘Common Masters’ business component, if the “Flight Details Validation Basis” is set as "Required" in the Set Options activity of the current business component. Data entry in this field is mandatory if the flight and leg numbers are not specified. Leave this field blank, if the flight status of the aircraft is either “Cancelled” or “Substituted”. Help facility available.
Departure Date	The date on which the leg of the journey starts (Date Format). You can also enter a date that is earlier than the “Flight Date”.
Departure Time	The time at which the leg of the journey starts (Time Format). Data entry in this field is mandatory if the Flight # and Leg # are available and if the flight status is “Delayed”, Diverted” or “Air Turned Back”. Otherwise, the system displays by default the value defined for the schedule departure time in the “Aircraft Routing” business component. Leave this field blank, if the flight status of the aircraft is set to “Cancelled”, “Substituted” or “Ground Turned Back”.
Note: If the departure time is not defined in the “Aircraft Routing” business component, the system displays by default the departure time from the Flight Schedule/Flight Code defined in the “Flight Assignment” business component.
Take Off Date	The date on which the flight takes off (Date Format). If this field is left blank, the system considers the “Departure Date”. Leave this field blank, If the “FH Log Mode” is set as "Hobbs Meter Reading" for the Aircraft Registration number. Leave this field blank, if the flight status of the aircraft is “Cancelled”, “Substituted” or “Ground Turned Back”.
Take Off Time	The time at which the flight takes off (Time Format). If this field is left blank, the system considers the “Departure Time”. Leave this field blank, If the “FH Log Mode” is set as "Hobbs Meter Reading" for the Aircraft Registration number. Leave this field blank, if the flight status of the aircraft is “Cancelled”, “Substituted” or “Ground Turned Back”.
Landing Time	The landing time of the flight (Time Format). Leave this field blank, If the “FH Log Mode” is set as "Hobbs Meter Reading" for the Aircraft Registration number. Leave this field blank, if the flight status of the aircraft is “Cancelled”, “Substituted” or “Ground Turned Back”.
Arrival Date	The date at which the leg of the journey ends (Date Format). The date entered in this field must be later than the “Take Off Date”. The aircraft’s "FH Log Mode" is set as "Actual Flight Times", then, the data entry into this field is mandatory. Leave this field blank, if the flight status of the aircraft is “Cancelled”, “Substituted” or “Ground Turned Back”.
Arrival Time	The time at which the leg of the journey ends (Time Format). Data entry in this field is mandatory, if a value is available in the Flight # and Leg # fields and if the flight status is set as “Delayed”, “Diverted” or “Air Turned Back”. This is applicable only if the “FH Log Mode” for the aircraft is set as “Actual Flight Times” in the “Aircraft” business component. The time entered in this field must be earlier than the “Landing Time” and later than the “Take Off Time”. Leave this field blank, if the flight status of the aircraft is “Cancelled”, “Substituted” or “Ground Turned Back”.
Hobbs-Out	The readings recorded from Hobbs meter during take off of flight.The system retrieves a. The “Hobbs-In” value identified for the last leg of the journey log as the “Hobbs-Out” value If a preceeding Journey Log is in “Fresh” status for the Aircraft Reg #. b. Latest updated “Hobbs Meter Reading” value for the Aircraft Reg # as defined in the “Aircraft Parameter Master” in the “Hobbs-Out” column if no preceeding journey log is in “Fresh” status. c. Zero as the value in “Hobbs-Out” column If the parameter mapped to “Hobbs Meter Reading” base parameter for the Aircraft Reg # is not initialized in the “Aircraft” business component. Leave this field blank, If the “FH Log Mode” is set as "Actual Flight Times" for the Aircraft Registration number.
Hobbs-In	The readings recorded from Hobbs meter during landing of flight. Ensure that a value is entered in this field, If the "FH Log Mode" is set as “Hobbs Meter Reading” for the Aircraft Reg #. The value entered here must be greater than or equal to “Hobbs-Out” value. Leave this field blank, If the “FH Log Mode” is set as "Actual Flight Times" for the Aircraft Registration number.

Note: If the “Landing Time” field is left blank, the system considers the “Arrival Time” as the landing time.

Note: If the “FH Log Mode” is set as "Actual Flight Hours" and the “Enforce Sequential Reporting of Journey Log” is set as "Allowed" in the current business component, the “Departure Date” and “Departure Time” must be greater than or equal to the “Arrival Date” and “Arrival Time” of the last leg of the latest preceding journey log for the Aircraft Reg #, with reference to UTC.

Note: If the Flight # and Leg # exist in their respective fields, if the “Arrival Time” is not entered and only if the “FH Log Mode” is set as "Actual Flight Times" for the Aircraft Reg # as defined in the “Aircraft” business component, then the system considers

The “Sch. Arrival Time” retrieved from the “Routing Master” business component as the “Arrival Time” for the “Flight Status” as “On Schedule”.
The “Arrival Date” and “Arrival Time” as the sum of the “Departure date” and “Departure Time and Est. Travel Duration as specified in the “Flight Assignment” business component for the “Flight Status” as “Diverted”.

If the “Enforce Sequential Reporting of Journey Log” field is set as “Allowed” in the “Set Options” activity of the current business component, ensure the following before clicking the “Amend Journey Log” or “Approve Amendment” pushbutton:

If the Flight Status of an intermediate leg of the last journey log is set as “Deleted”, ensure that the Hobbs-Out value of the leg subsequent to the intermediate leg is same as the Hobbs-In value of the leg whose flight status is other than “Deleted” or “Cancelled”, that is preceding to this intermediate leg.

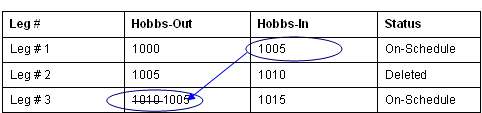

For Example: Assuming that the intermediate leg of the last journey log mentioned here is Leg# 2 whose flight status is “Deleted”, the Hobbs Out meter reading for the subsequent leg which is Leg # 3 should be 1005 which is nothing but the Hobbs In meter reading of Leg # 1 whose flight status is other than “Deleted” or “Cancelled”.

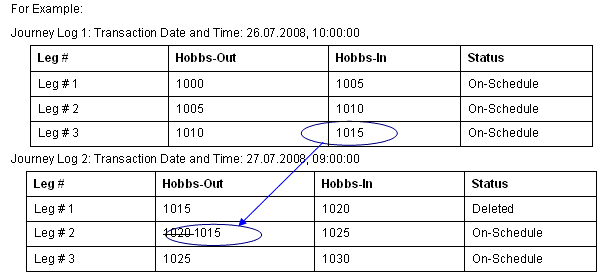

If the Flight Status of the first leg of the last journey log is set as “Deleted”, then ensure that the Hobbs-Out value of the subsequent leg in the current journey log whose flight status is other than “Deleted” or “Cancelled”, is same as the Hobbs-In value of the last leg of the approved journey log that is preceeding to the current journey log. The immediate preceeding journey log reported for the same aircraft is identified based on the transaction date and time.

Note: You cannot modify the flight status of any of the legs to “Deleted” unless the leg belongs to the last journey log, even if the “Enforce Sequential Reporting of Journey Log” field is set to “Allowed”.

Enter the following:

Block Hours	The difference between the departure time and the arrival time of the flight (Time Format)..
Flight Hours	The total time between the take off and landing of the flight (Time Format). If “FH Log Mode” is set as “Hobbs Meter Reading" for the Aircraft Reg # then Flight Hours is computed as the difference between Hobbs-Out and Hobbs-In values. Example: if Hobbs (Out) reading is 100.3 and Hobbs-In reading is 102.5, then the flight time is updated for 2Hrs 12 Mins (02:12).
The system displays the following fields
Delay on Dep. (HH:MM)	The delay at the time of departure of the flight in terms of hours or minutes. This value is computed as the difference between the scheduled departure time and the actual departure time of the flight.
Delay on Arr. (HH:MM)	The delay at the time of arrival of the flight in terms of hours and minutes. This value is computed as the difference between the schedule arrival time and the actual arrival time of the flight.

Note: The system computes and displays the delay on departure and delay on arrival only when the flight status specific to the aircraft is either “On Schedule” or “Delayed”. Both the values are computed in UTC time zone.

Enter the following fields:

Flight Status

Use the drop-down list box to specify the flight status. The system lists the following options:

“On Schedule” – Select this option if the arrival or departure of the flight is as per the schedule.
“Delayed” – Select this option if there is a delay in the arrival or departure of the flight.
“Cancelled” – Select this option if the flight is cancelled.
“Diverted” – Select this option if the flight is diverted through a different route.
“Air Turned Back” - Select this option if the flight returns to the starting station after take off.
“Ground Turned Back” – Select this option if the flight returns to the starting station without take off.
"Deleted” – Select this option, if any erroneous line level record must be deleted.

By default, the system sets the field to “On-Schedule”.

Note: If the “Flight Status” is set as “Cancelled”, the “Arrival Station” must not be specified.

If the “Flight Status” for a flight and leg combination is “On-Schedule” or “Delayed”, and if the “Flight Details Validation Basis” is set as "Required" in the Set Options activity of the current business component, ensure that the given arrival station is defined for the flight and leg combination in the “Flight Assignment” business component.

If the “Flight Status” for a flight and leg combination is “Diverted”, ensure that the “Arrival Station” is one of the diverted arrival stations defined for the flight and leg combination in the “Flight Assignment” business component.

If the “Flight Status” is set as “Air Turned Back”, ensure that the arrival station is the same as the departure station.

If the “Flight Status” is set as “Ground Turned Back”, ensure that the arrival station is the same as the departure station for that record.

No. Of Pax	The number of passengers traveling in the flight (Integer). Mandatory
Take Offs	The number of take-offs for the flight during the journey (Integer).
Landing Type	Use the drop-down list box to specify the landing type. The system lists all the quick codes of the type “Landing Type” defined in the “Create Quick Codes” activity. The system leaves this field blank by default.
Touch & Go Count	The number of touch-and-go stops for the journey log being recorded (Integer). Ensure that the value entered here is positive. The touch-and-go stops used for training purposes can also be recorded.
Departure Fuel Reading	The amount of fuel in the aircraft fuel tanks at the time of flight departure (Decimal). Ensure that the number entered in this field is positive.
Arrival Fuel Reading	The amount of fuel in the aircraft fuel tanks at the time of flight arrival (Decimal). Ensure that the number entered in this field is positive.
Parameter 1	The first parameter of the leg (Alphanumeric, 40).
Parameter 2	The second parameter of the leg (Alphanumeric, 40).
Parameter 3	The third parameter of the leg (Alphanumeric, 40).
Parameter 4	The fourth parameter of the leg (Alphanumeric, 40).
Parameter 5	The fifth parameter of the leg (Alphanumeric, 40).
Parameter 6	The sixth parameter of the leg (Alphanumeric, 40).
Maint. Execution?	Use the drop-down list box and set the field to “Yes” to specify whether maintenance execution was performed during the journey. Select “No” otherwise. By default, the system sets the field to last saved value for the journey log.
Cabin Crew Change?	Use the drop-down list box and set the field to “Yes” to specify whether there was any change in the cabin crew between the legs, during the journey. Select “No” otherwise. By default, the system sets the field to "No".

Note: If the “Cabin Crew Change?” field is set as “Yes” for a record in the multiline, ensure that you enter a different cabin crew for the next record.

Note: For each row of the Leg Details multiline, if the “Parameter Type” is “Range” or “Consumption”, then ensure that the positive numeric values are entered in the Parameters column.

The system displays the following fields:

Sch Departure Time	The time at which the aircraft is scheduled to depart from the station.
Sch. Arrival Time	The time at which the aircraft is scheduled to arrive at the station.

Enter the following field:

Remarks

Any remarks pertaining to the leg (Alphanumeric, 255).

To proceed, carry out the following:

Select the “Summary Parameter Details” tab to enter the details of the parameters mapped to the journey log.
