Journey Log WorkSpace

Invoking Journey WorkSpace

• Upon successful login to the Ramco Aviation home page, use the drop-down list box on the top of the screen to select WorkSpace. A list of WorkSpaces appears at the top left of the screen. See Figure 1.

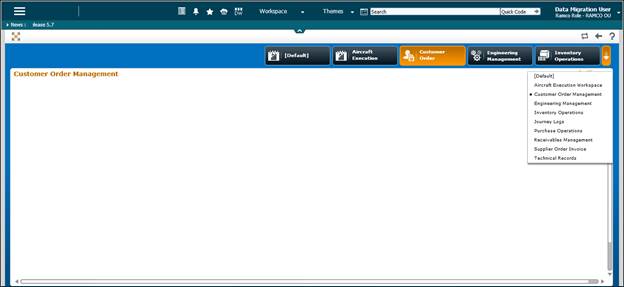

        Figure 1: The Application launch screen

• Click Journey Logs to invoke the workspace. The Journey Logs WorkSpace appears. See Figure 2.

                    Figure 2: The Journey Log WorkSpace

The WorkSpace comprises of concise sections including:

1.     Search

2.     Journey Log List

3.     Journey Log Details

4.     Charts

Search section

On the launch of the WorkSpace, users can search for journey logs associated with a specific aircraft or aircraft model.

• In the input box, enter Aircraft Reg. # or Aircraft Model # to retrieve journey logs. See Figure 3.

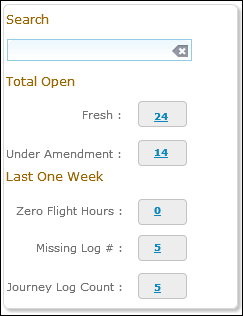

        Figure 3: The Search section

The results retrieved in the WorkSpace are illustrated in the next table.

Journey Log List section

• Click the result bucket in the Search section. The details of the journey logs are displayed in the multiline in this section. See Figure 4.

.

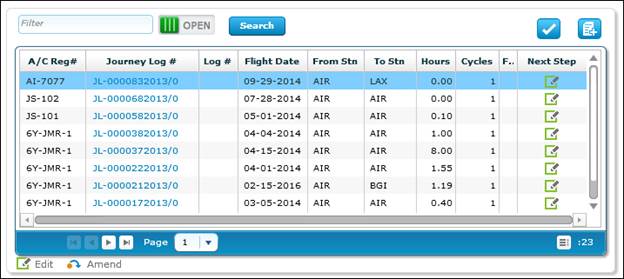

        Figure 4: The Journey Log List section

• To further narrow down search, you can enter A/C Reg. #, From Station and To Station of journey logs in the input box multiline and then click the Search button.

The multiline retrieves / displays journey logs that satisfy the criteria provides in the Search sections and Journey Log section.

• To create a journey log for an aircraft, enter the aircraft registration # in the input box above the multiline and then click the  button. The “Create Journey Log” page appears.

• To approve a journey log, the aircraft registration # in the input box above the multiline and then click the button. The “Approve Journey Log” page appears.

• To retrieve journey logs regardless of their status, click the button. The button is a toggle switch. It displays ‘All’ or ‘Open’.

• To retrieve journey logs in the ‘Fresh’ status, click the button.

• To further process a journey log, click on the hyperlink in the Next Step column of the multiline.

The next step could be one of the following:

• Modifying the journey log in the ‘Fresh’ status

• Amending the journey log in the ‘Approved’ status.

Journey Log Details section

• Click on the hyperlinked Journey Log # in the multiline of the Journey Log section. The details of the journey log are split and shown in exclusive panels.

• Leg Level Details

• Take-Off Details

• Landing Details

• Parameter Information

• Summary Parameter Details multiline

        Figure 5: The Leg Level Details panel

• Click the  icon to amend the journey log.

Take-Off Details

         Figure 6: The Take off details panel

Landing Details

          Figure 7: The Landing details panel

Parameter Information

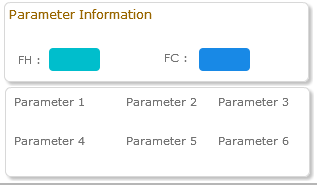

             Figure 8: The Parameter info panel

Note: The Parameter Information panel displays the FH and FC values. The values for parameters 1-6 will be displayed, if the journey log has recorded values. Conversely, it will display “Leg Level Parameters are not defined”.

Summary Parameter Details

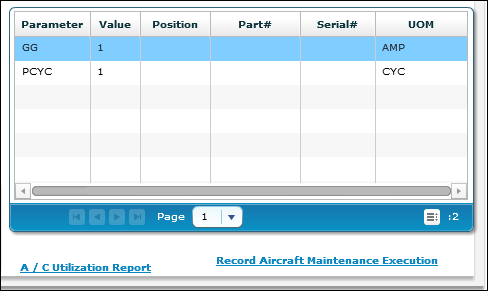

         Figure 9: The Parameter details multiline

Charts

The Chart section shows graphs pertaining to aircraft and aircraft model utilization.

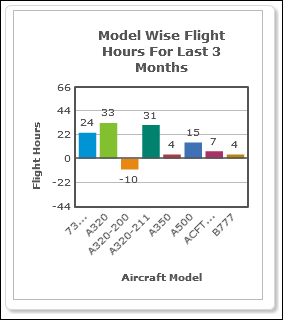

The first graph shows aircraft model-wise cumulative FH recorded in journey logs for the past three months. See Figure 10.

           Figure 10: The first chart and second charts

• Click over the graph to see month-wise data for each model in the adjacent graph. See Figure 6.

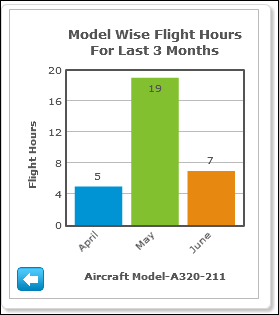

The second graph shows month-wise cumulative FH recorded in journey logs for the past three months.

• Click the button to go back to the first graph.

Legends
